Hub 8 Pro

Powers, connects and protects a whole arm of nodes. Every port is its own USB-C power source and its own CAN segment, so one damaged cable can’t take the rest down.

D1 · Hub 8 ProHub only; power supply optional$399

Ships inside the Checkmate Leader and on its own.

Hub 8 Pro eight-port USB-C hub in black anodized aluminum with eight numbered ports on the front edge P1–P8 · node ports, PD + CAN each Machined 6061 case
Fig. 01Hub 8 Pro, port side
01Overview

A star, not a chain.

01

Eight node ports

Plus two accessory ports for a Sync Beacon or Contour, and an upstream port to chain hubs for bimanual stations.

02

Power per port

Each port is a USB-C PD source: off when empty, 20 V at 1.5 A once a node asks for it, and 3 A on up to two ports.

03

Isolated CAN

Every port is its own CAN segment, bridged inside the hub. A crushed cable is cut off; the others keep running.

04

Hardware e-stop

A two-channel input removes motor power in hardware, with no firmware in the path.

02Host

One cable to the PC, one device for every node.

The hub appears as a single USB device whose CAN channels show up as standard SocketCAN interfaces on Linux. Each node’s own USB stays reachable for setup and updates.

  • CAN-FD for SmartServo G, classic CAN for SmartStepper and accessories
  • Shared 20 V motor rail: one node’s braking feeds another
  • Per-port power and bus telemetry
  • Machined aluminum case

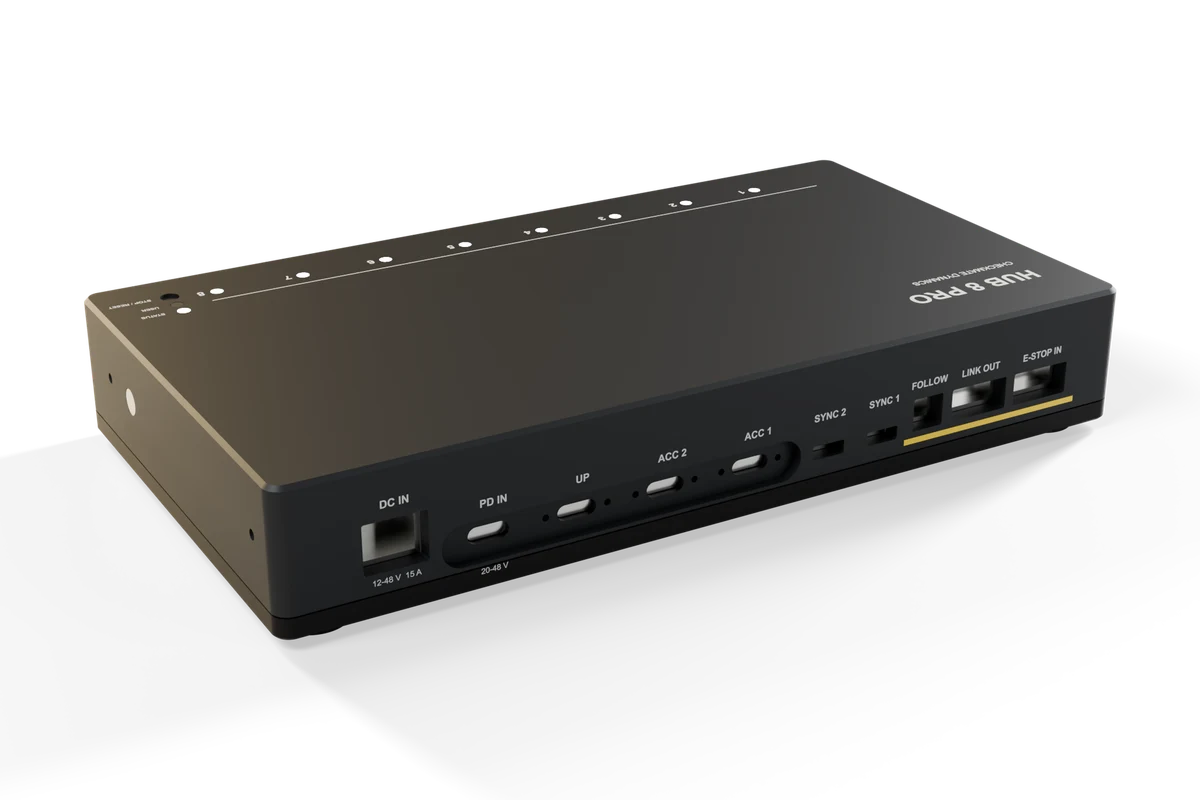

Rear panel of the Hub 8 Pro eight-port USB-C hubPower inE-stop · link · sync
Fig. 02Rear panel
03Bus cable
Cable Clip holding a USB-C bus cable in a node port

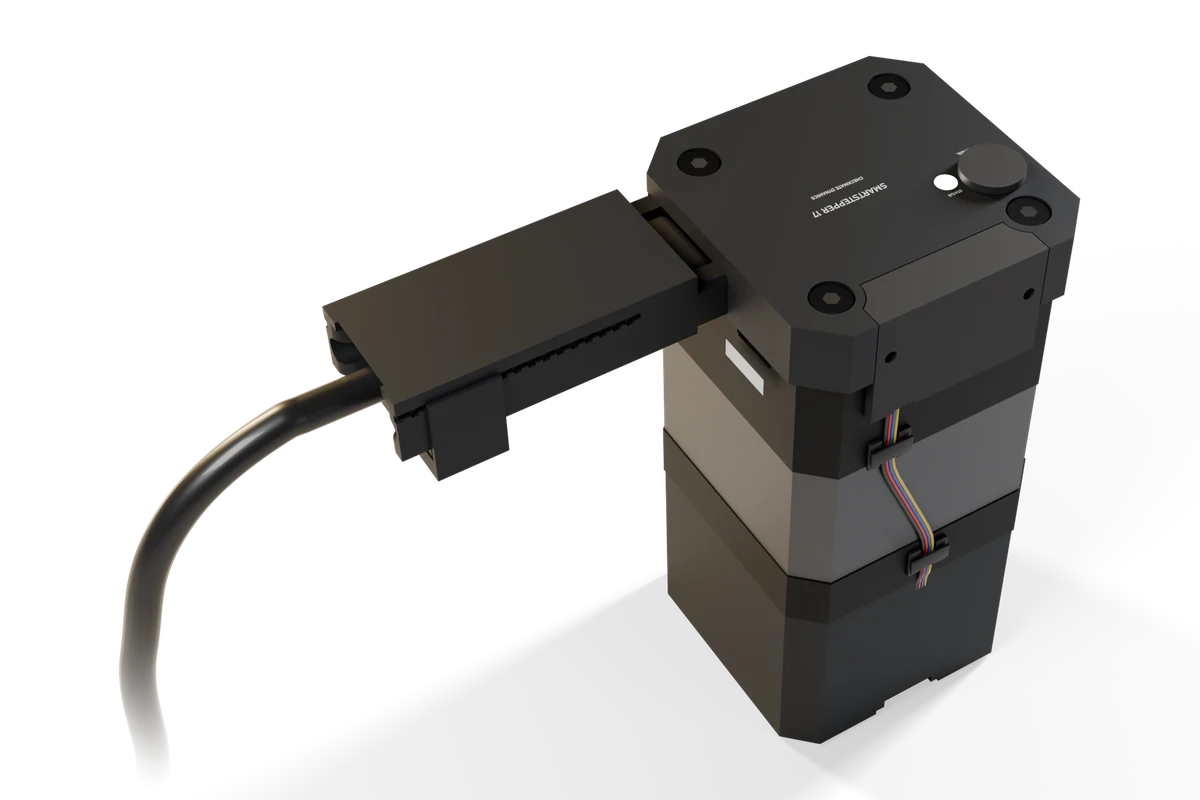

Fig. 03A node’s USB-C cable held by the Cable Clip

Power, USB and CAN on one cable.

Every Checkmate device uses its own USB-C port as the bus. Any full-featured USB-C cable carries all three; charge-only cables won’t carry CAN.

  • One cable and one Cable Clip (anodized 6061) ship in every node box; extra clips $9
  • The Clip Bar 8 screws across all eight ports and clamps every cable, so a snag can’t pull a joint offline
04Specification
Ports8 node · 2 accessory · 1 upstream; USB-C with M2 threads for the Clip Bar 8
Port powerUSB-C PD source per port: 5 V on attach, 20 V / 1.5 A on request; 3 A on up to 2 ports
BusActive CAN star with CAN-FD and classic domains; ports isolated
Host linkOne USB device per hub; SocketCAN-compatible channels
SafetyTwo-channel normally-closed e-stop input; hardware cut of motor power
Power in12–48 V DC or USB-C PD; supply optional
EnclosureMachined 6061 aluminum, 218 × 120 × 34 mm
CascadingSecond hub’s upstream port into an accessory port; one hub per arm

Each shipped unit comes with its own measured test card.

05Figures

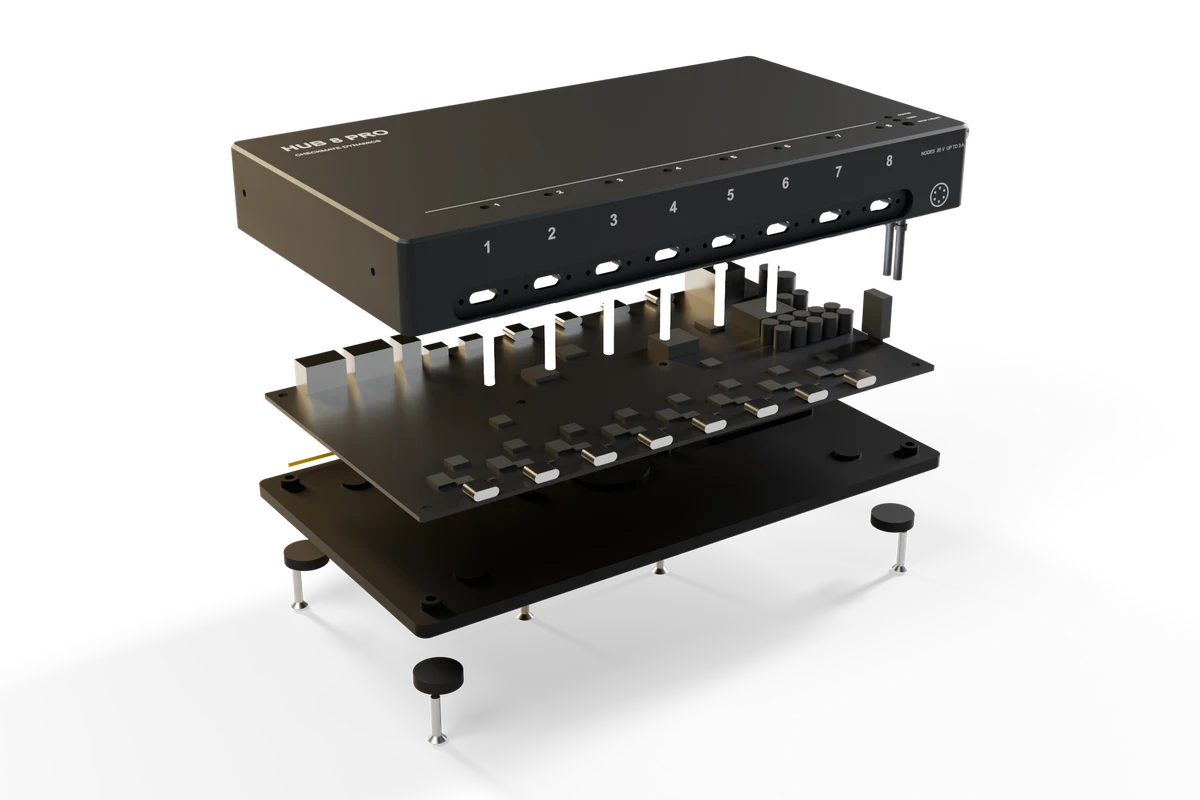

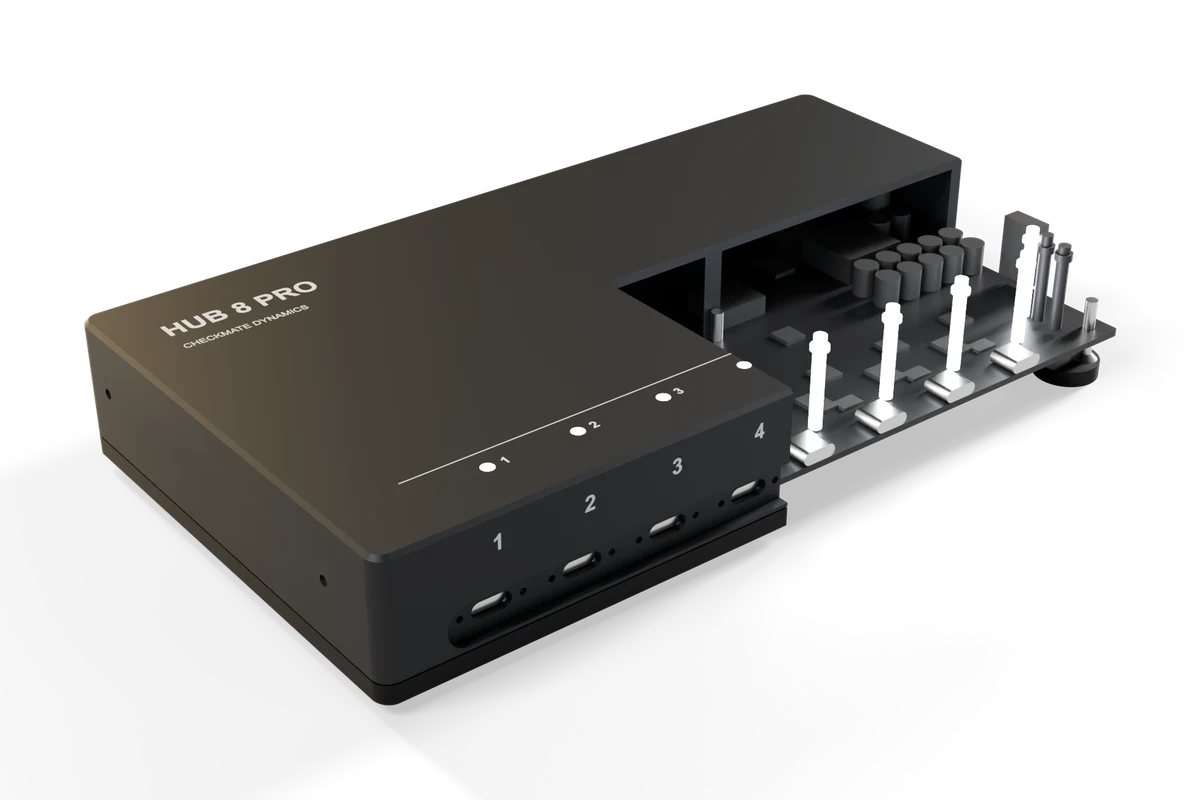

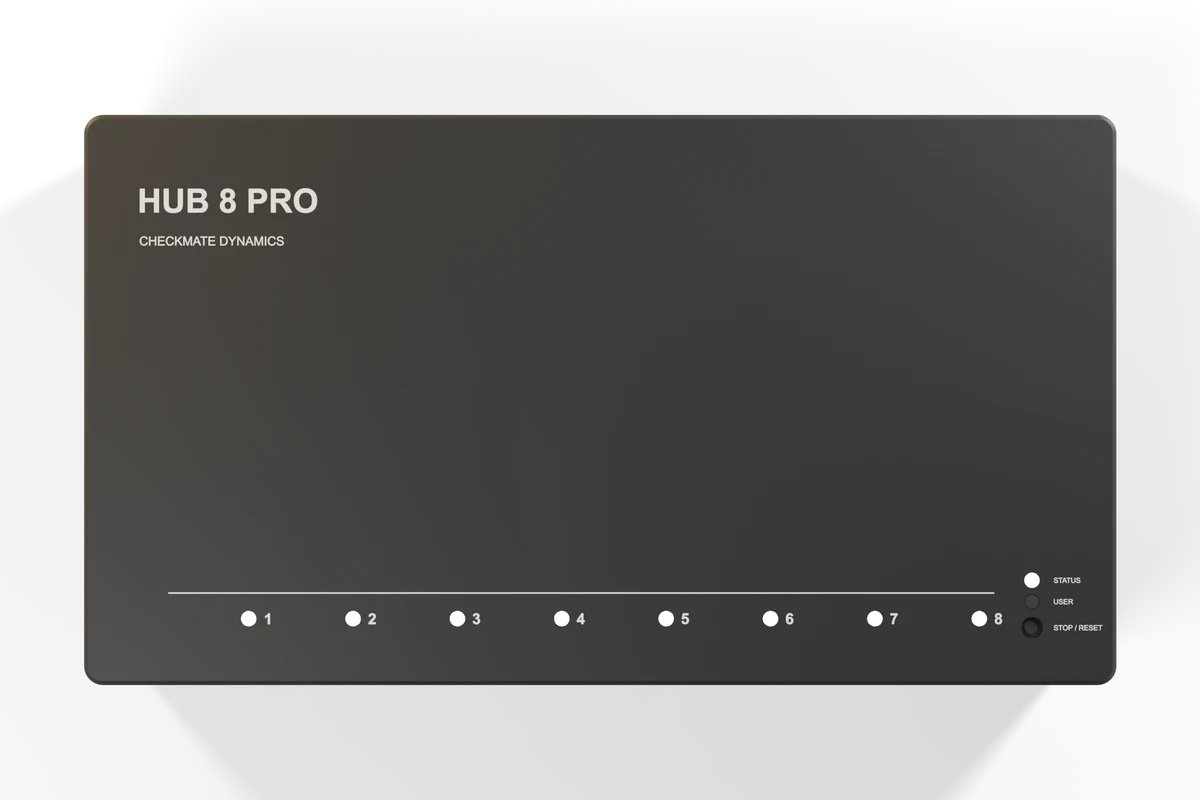

The hub from other angles.

05Hub 5

Hub 5: five node ports on one USB-C cable. $89

The smaller hub, for a four-axis arm with a gripper or a bench of nodes. One USB-C power input, five node ports, CAN to every node and a hardware stop.

Ports5 node ports, USB-C
Power inOne USB-C PD input. 60 W on a plain charger; 100 W with a 100 W charger and a 5 A cable. Works with any USB-C PD charger; none in the box
BusCAN to every node port
SafetyHardware stop

Eight nodes on one hub.
