Ways in / 01Makers, students, labs

Robot parts that arrive finished.

Motor nodes with the driver, encoder, controller and gearbox built in. Plug in a USB-C charger, open the app in a browser, move. They’re the units our commercial leader arm is built from.

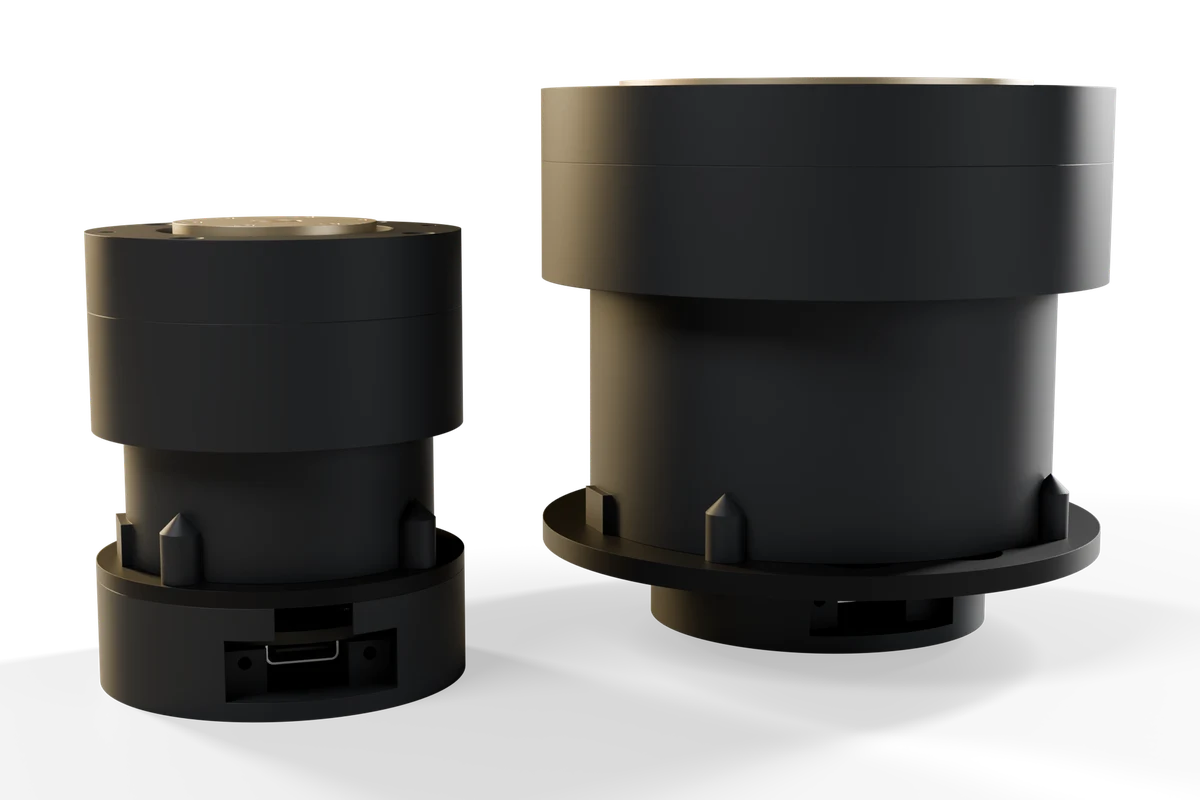

SmartServo G-2804 and G-5208 brushless servo nodes in champagne-anodized and black aluminum, side view, concept render — **A2.3 · A2.5**SmartServo G · G-2804 20:1 and G-5208 25:1

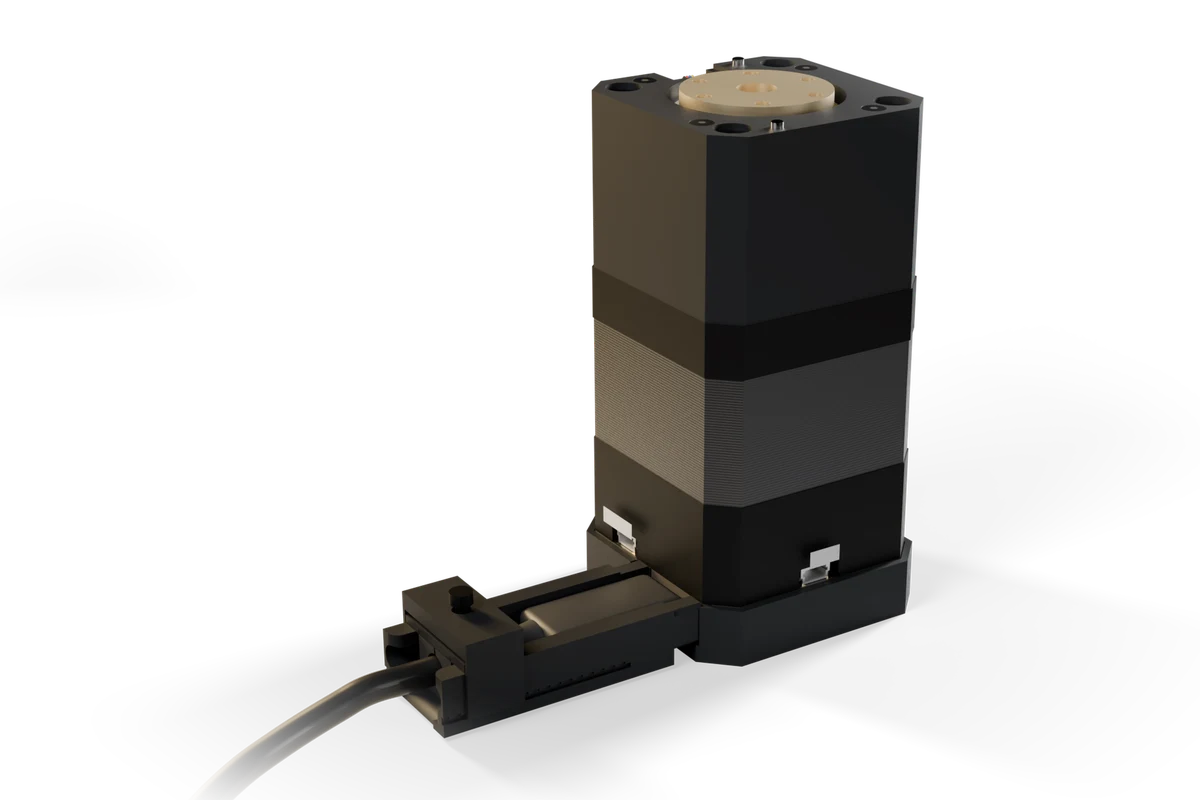

SmartStepper 17 node standing with its USB-C bus cable held by a Cable Clip, concept render — **A1.3**SmartStepper 17 · 25:1, on its bus cable

Fig. 01 — Two SmartServo G nodes in side elevation, and a SmartStepper 17 on its USB-C cable with a Cable Clip. Concept renders.

01Why nodes

It’s found, named and ready when you plug it in.

No wiring puzzle

No driver, encoder, microcontroller and supply to match up. One calibrated unit.

One app

Calibration, limits, jogging and live plots in the browser. The same app runs one node or a full station.

Python when ready

Script one node or a dozen over CAN, from Python, ROS 2 or LeRobot.

Test card in the box

Each unit’s measured numbers, printed and stored on the node.

02Planned prices

Every node, in one list.

No.NodeBest forWhat it isUSD

A1.1SmartStepper 17 BoardPrinters, CNCClosed-loop controller for your own NEMA 1779 A1.2SmartStepper 17 · DirectAxes, turntablesDirect drive on a calibrated NEMA 17169 A1.3SmartStepper 17 · 25:1Arm jointsMetal cycloidal and output encoder279 A2.1SmartServo G BoardOwn motorsFOC board for 2804 and 5208 motors89 A2.2G-2804 · DirectPan, hapticsDirect-drive gimbal servo, no backlash159 A2.3G-2804 · 20:1Wrists, grippersCycloidal, output encoder, I/O tile249 A2.4G-5208 · DirectCamera heads, benchesLarger direct-drive gimbal servo249 A2.5G-5208 · 25:1Heavier jointsCycloidal, output encoder, I/O tile399 D3I/O tileSmartServo GQwiic and AUX ports19 B3Output encoderRetrofitReads a reducer’s output angle29 B1ContourDepthTime-of-flight depth over USB-CRegister interest

Planned list prices. Nothing is on sale yet; registered interest sets the order of the first batch.

03Upgrade path

Board, then node, then geared node.

Start with a board on your own motor, add our motor and housing later, then a reducer. The node keeps its identity and calibration history as it grows.

SmartServo G node exploded into gimbal motor, board, magnetic encoder and housing, concept render — **Fig. 02**SmartServo G stackConcept render

04Who it’s for

For people who build.

Printer and CNC upgraders

Closed-loop axes that report a stall instead of shifting a layer, on STEP/DIR from Klipper, Marlin or GRBL.

Robot-arm builders

Joints that know their position, on one cable, without a pile of separate electronics.

LeRobot and SO-101

Quiet, backdrivable joints with calibration that lives on the node, for leaders, wrists and grippers.

FOC tinkerers

Field-oriented control on gimbal motors without assembling a driver, encoder, MCU and supply.

Camera and astro rigs

Silent, repeatable moves for sliders, pan heads and turntables.

University labs

Documented parts for courses and research rigs.

Tell us what to build first.

Tell us which nodes you want. Registered interest sets the order of the first batch.
